Kwikool KPO5-21 Commercial Portable Air Conditioner 60000 BTU, 5 Ton
$13,265.00
Kwikool KPO5-21 5 Ton Commercial Portable/ductable air conditioner for cooling of office spaces, party tents, temporary medical facilities. Operates on 208v/230v single-phase power. Durable, high-quality and proudly made in the USA!

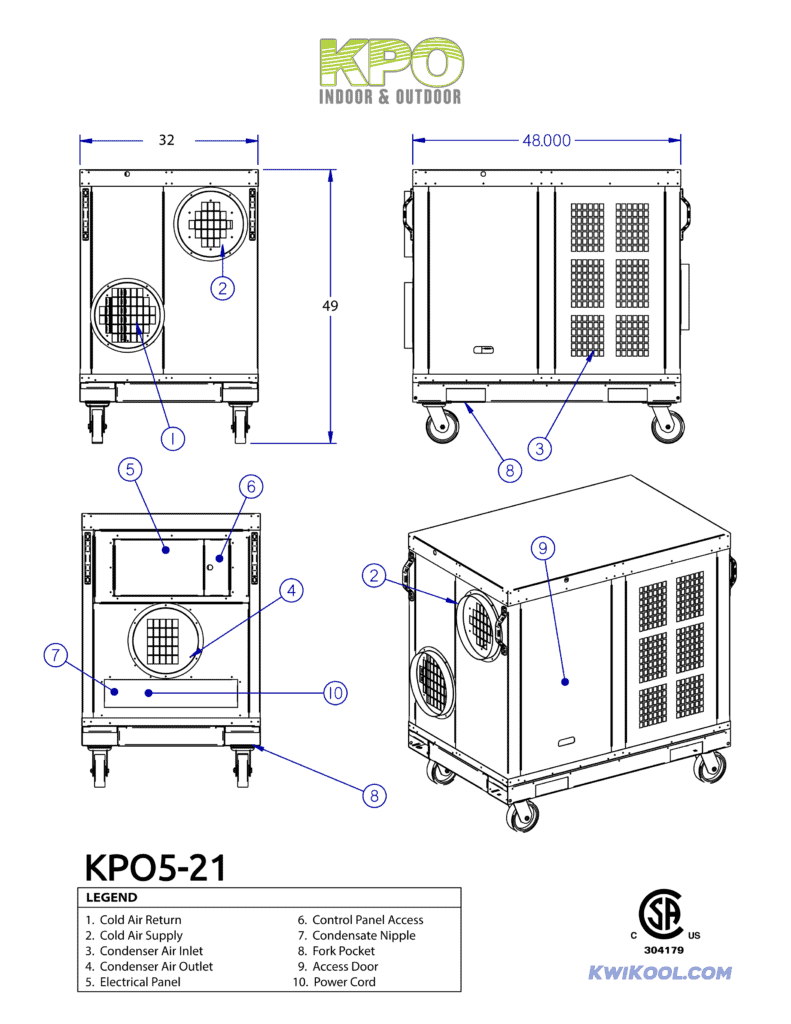

The Model KPO5-21 (nominal 5-ton or 60,000 BTU) is a compact portable 32 inches wide and will fit through a standard 36-inch door. This small footprint that is ideal for difficult applications that require moving cold air to a hard to reach heat load, such as a sealed interior room. The KPO Series KwiKool’s Indoor/Outdoor Line of portables provide solutions for large capacity cooling. They provide temporary cooling needed when dedicated A/C units are incapacitated and in the midst of repair or service. The KPO5-21 models are rugged units which provide continuous and reliable, powerful blowers. They can be placed outdoors and ducted into the building or placed inside and ducted into an interior room. The KPO Series offers advanced airflow capabilities, up to 50 feet cold air return and supply and up to 65 feet of hot air exhaust ducting. Even when ambient temperatures are extreme, you can rely on The KPO Series.
The KPO5-21 runs on a 208V- 1Ø 50 Amp Circuit / 230V- 1Ø 60 Amp Circuit single phase circuit, which must be hardwired by a qualified electrician. The condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that will operate at temperatures below freezing. The heavy-duty base has removable wheels and forklift skid access for easy movement, setup, and transport. All KPO models come with a high functional phase monitor for electrical protection from unacceptable power, which damages electrical components. The unit also comes with an internal high lift condensate pump.
Ask about the Optional Heating Capabilities
Specifications
COOLING CAPACITY |
|
|
|
BTU/hr @ 95F at 60% RH |
60,000 (5-Ton) |
|
Operating Temperatures |
Evaporator
65-110 F 50%RHCondenser
30-110 F 50%RH |
HEATING – OPTIONAL |
|
|
|
Heat Strips/BTU |
12kW/41,600 |
COMPRESSOR DATA |
|
|
|
Compressor Type |
Hermetic Recip. |
|
Refrigerant |
407C |
FAN DATA |
|
|
Evaporator |
|
|
|
Fan Type (Centrifugal) |
Direct Drive |
|
Air Flow (CFM) |
2,400 |
|
Supply and Return Air Device |
1-12″ flanges for supply duct and 1-12″ flange for return duct |
|
Maximum Duct length |
50′ each for supply and return. |
Condenser |
|
|
|
Fan Type (Centrifugal) |
Direct Drive |
|
Air Flow (CFM) |
3500 |
|
Condenser Exhaust flange |
12″ |
|
Condenser Duct Max. Length |
65′ |
|
Condenser fan speed control |
Variable Frequency Drive |
ELECTRICAL DATA |
|
|
|
Power Supply (Volts) |
208/230 Single Phase |
|
Current Consumption (Amps) |
37.5 / 34.1 |
|
Power Consumption (kW) |
7 |
|
Maximum Circuit Breaker (Amps) |
50 on 208V / 50 on 230V |
|
Recommended Breaker Size |
50 |
|
Minimum Circuit Ampacity(Amps) |
43.9 |
|
Min./Max. Voltage |
195-225/210-250 |
|
Power Cord Gauge/Length |
8 AWG/10′ |
|
Plug Configuration |
Hard Wired |
CONSTRUCTION |
|
|
|
Skid |
12 Gauge G90 Galvanized Steel with Epoxy Powdercoat Finish |
|
Cabinet |
16 Gauge G90 Galvanized Steel with Epoxy Powdercoat |
|
Casters |
6″ Heavy Duty Swivel and Locking |
DIMENSIONAL DATA |
|
|
|
Width x Depth x Height (Inches) |
32″ x 48″ x 49″ with 6″ Casters |
|
Weight (Lbs.) |
670 |
|
Shipping Weight (Lbs.) |
735 |
SAFETY DEVICE DATA |
|
|
|
Compressor Overload |
Internal |
|
Fan Motor Overload |
Automatic Internal |
|
Evaporator Freeze Protection |
Hot Gas Bypass with variable fan speed control |
|
High Pressure Switch |
Manual |
|
Low Pressure Switch |
Automatic |
|
Compressor Short Cycle |
Yes |
|
Automatic Restart |
Yes |
|
Thermostat Type |
Digital |
|
Condensate Pump Overflow |
Yes |
|
Internal Condensate Pump (high lift) |
Yes |
