Ceiling Kit Kwikool BioKool Series
KPAC1811-2 Portable Air Conditioner 1.5 ton

KPAC1411-2 PORTABLE AIR CONDITIONER 1.1 ton

$2,495.00

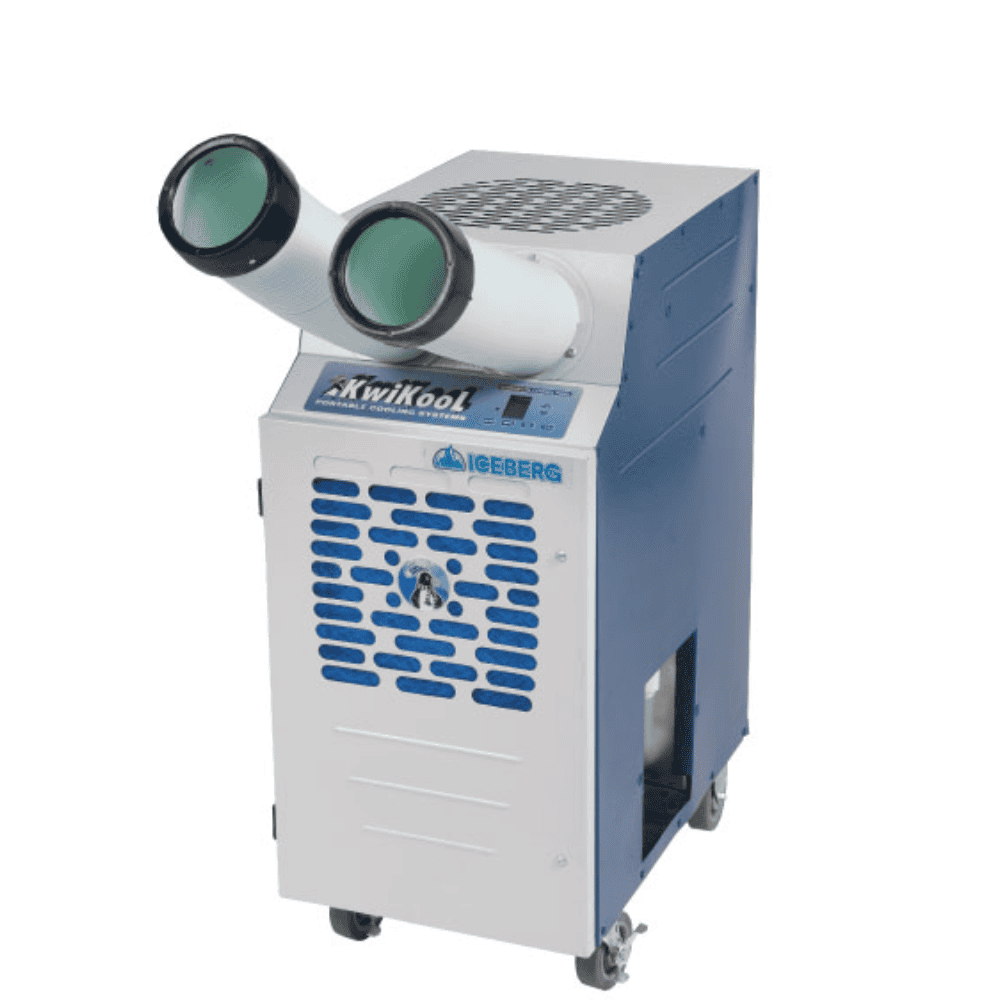

The Model KPAC1411-2 (nominal 1.1-ton or 13,700 BTU) is the smallest unit in size and capacity in The KPAC II Series, KwiKool’s Single Duct Line of portables. The KPAC1411-2 has an extremely small foot print that is ideal for spot cooling people or equipment in a high ambient environment.  Plugs into standard 115 volt wall outlet.

KwiKool products are proudly MADE IN AMERICA.





Available on backorder

Subtotal:

Add-ons total:

Total:

Quantity:

The Model KPAC1411-2 (nominal 1.1-ton or 13,700 BTU) is the smallest unit in size and capacity in The KPAC II Series, KwiKool’s Single Duct Line of portables. The KPAC1411-2 has an extremely small foot print that is ideal for spot cooling people or equipment in a high ambient environment. The KPAC II Series offers a quick cooling solution with its “plug and play” technology that tops the competition with its small size, strong air flow, and easy installation. The KPAC II Series achieves a 20 degree F. temperature differential across its coil. This means that 95 degree F. input air will produce 75 degree F. output air. For spot cooling applications at a work station the unit will effectively cool a person or equipment within 5 to 7 feet of the unit. The KPAC II Series out performs and out lasts other portables, all at a price that is comparable to other products.

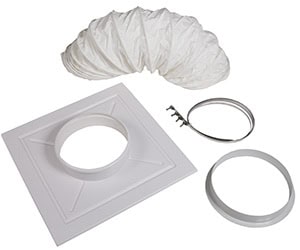

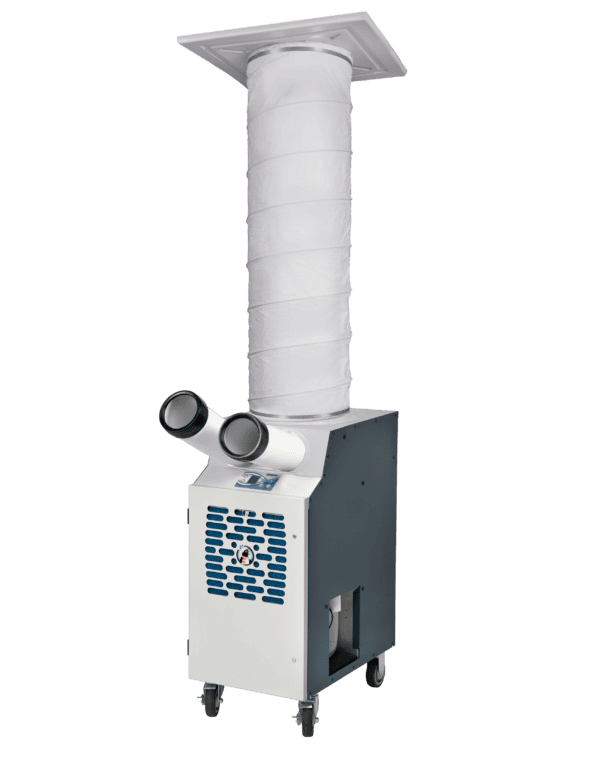

The KPAC1411-2 runs on a standard 115-volt/15-amp circuit with automatic restart after a power failure. The unit comes with a 3.5-gallon self-contained condensate tank with float activated unit cut off, that is manually emptied. Installation takes less than ten minutes for easy set up, using the single duct ceiling kit.

And, KwiKool products are proudly MADE IN AMERICA.

Additional information

Weight155 lbs
Dimensions26 × 16 × 37 in

Specifications

COOLING CAPACITY
BTU/hr @ 95F at 60% RH13,700 (1.1-Ton)
COMPRESSOR DATA
Compressor TypeHermetic Rotary
Operating Temperatures70-105 F 50%RH
Refrigerant410A
FAN DATA
Evaporator
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)460/1 Speed
Supply Air Device2 – 5″ Dia. x 16″ Air Chute
Supply Air Duct max. length25′
Condenser
Fan Type (Centrifugal)Direct Drive
Air Flow (CFM)700
Condenser Duct Specs (optional)1 – 12″ Dia. x 8′ Length
Condenser Duct Max. Length25′
ELECTRICAL DATA
Power Supply (Volts)115/Single Phase
Current Consumption (Amps)11.5
Power Consumption (kW)1.19
Maximum Circuit Breaker (Amps)20
Recommended Breaker Size15 or 20
Minimum Circuit Ampacity(Amps)17.085
Min./Max. Voltage105-125
Power Cord Gauge/Length14/6′
Plug ConfigurationNEMA 5-15

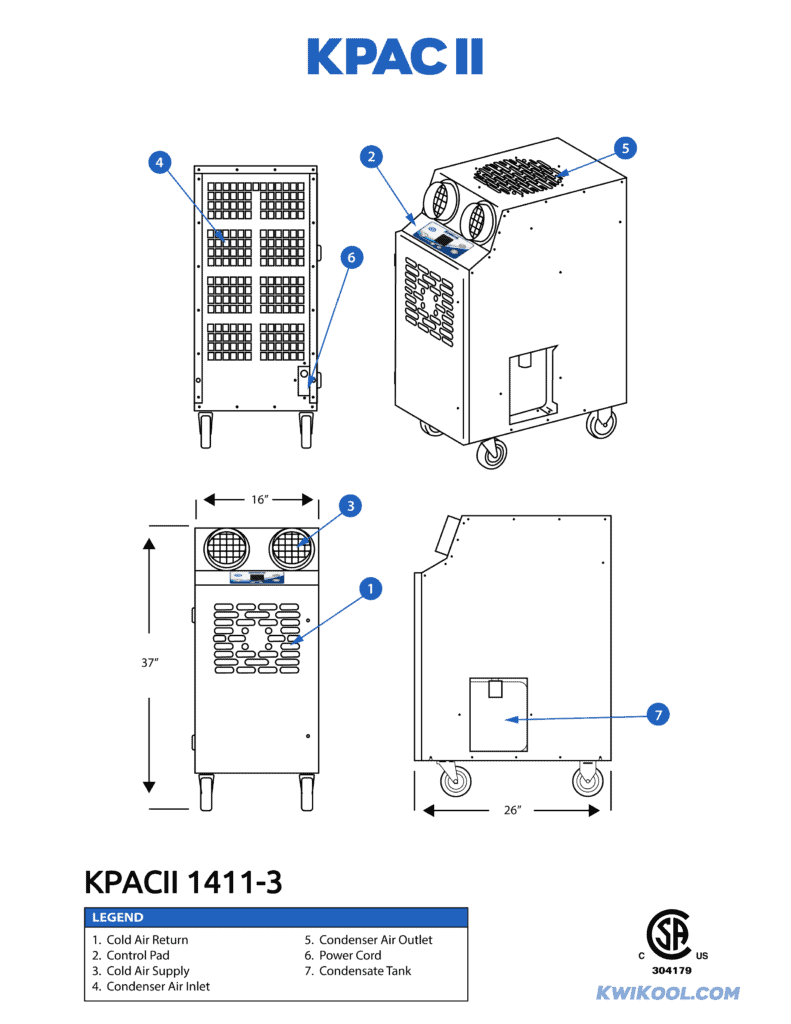

DIMENSIONAL DATA
Width x Depth x Height (Inches)16.325″ x 26″ x 37.25″
Weight (Lbs.)157
Shipping Weight (Lbs.)207
Ceiling Kit Weight (Lbs.)22
Shipping Weight w/ Ceiling Kit229
SAFETY DEVICE DATA
Compressor OverloadInternal
Fan Motor OverloadAutomatic Internal
Evaporator Freeze ProtectionFreeze Stat
High Pressure SwitchManual
Compressor Short CycleYes
Automatic RestartYes
Thermostat TypeMicroprocessor/Digital
Condensate Pump OverflowOptional
Condensate Tank OverflowYes
