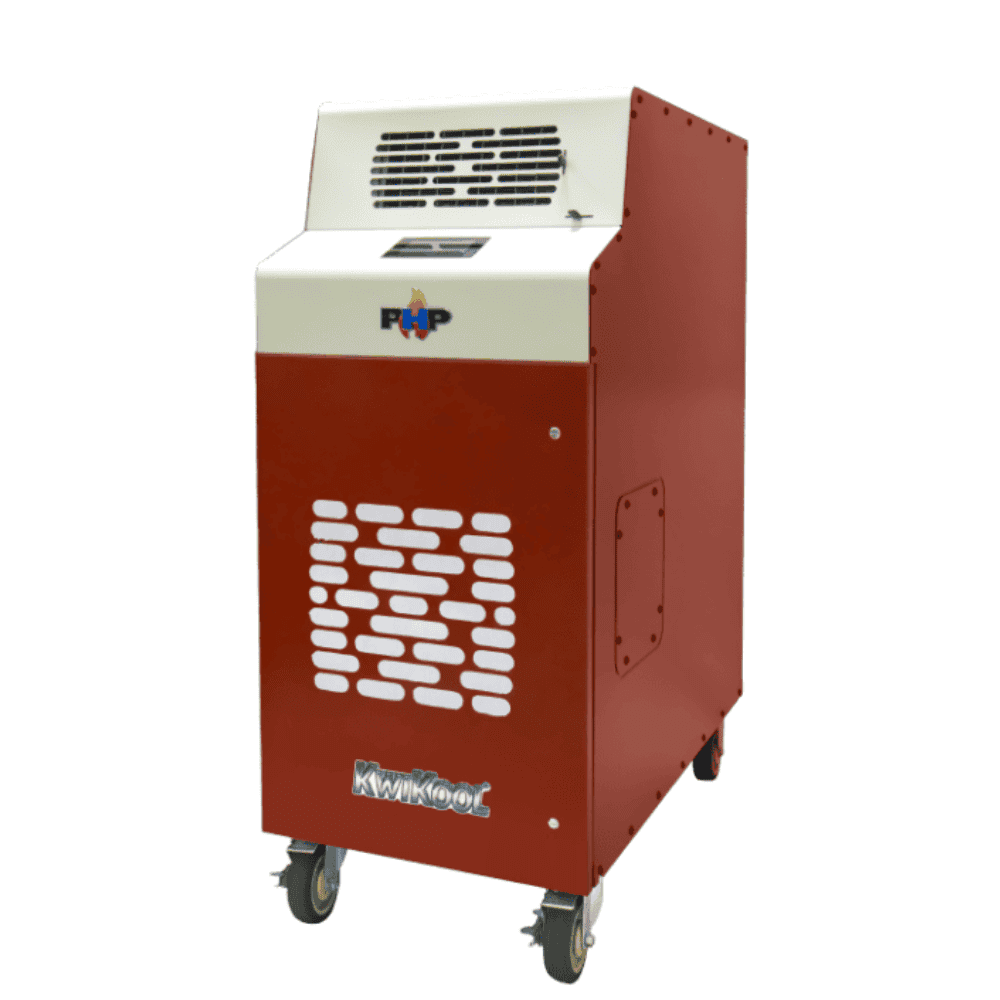

KPHP2211-3 Heat Pump, 1.8-ton Heating, 1.5-ton Cooling
$5,595.00
Kwikool Heat Pump KPHP2211-3, provides 21,240 or nominal 1.8-ton Heating and 17,700 or nominal 1.5-ton BTU cooling capacities. For quantity discount pricing please call 833-401-3569 extension 2, or submit a contact form and a representative will contact you to assist.
Free Shipping to zoned commercial or industrial location (lower 48 states) with dock or forklift, residential or liftgate will carry an additional fee. KwiKool products are proudly MADE IN AMERICA.
Filters Sort results Reset Apply Image Details Kwikool Heat Pump KPHP2211-3, provides 21,240 or nominal 1.8-ton Heating… $5,595.00 Max: Min: 1 Step: 1 Add to cart
Image | Details |
|---|---|
| Kwikool Heat Pump KPHP2211-3, provides 21,240 or nominal 1.8-ton Heating… $5,595.00 Max: Min: 1 Step: 1 Add to cart | |
Description
Kwikool Heat Pump KPHP2211-3 provides 21,240 or nominal 1.8-ton Heating and 17,700 or nominal 1.5-ton BTU cooling capacities. With its full-featured design, high sensible cooling and balanced air system, the KPHP 2211-3 is the perfect solution for comfort cooling and heating applications. The PHP Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features the PHP Series outperforms other portables and all at a price that is comparable to other available products. Unlike other heat pump brands, the KwiKool heat pump will operate all the way down to 45 degrees F.
- MADE IN USA
- 21,240 BTU/H – 1.8-ton capacity Heating
- 17,700 BTU/H – 1.5-ton capacity Cooling
- Compact yet Powerful
- Runs on 115V 20 amp circuit
- Operates down to a 45 degree F. ambient environment
- Balanced air pressure using separate condenser air input & output
- Superior safety compared to electric heaters
- Standard high pressure condensate pump
- Easy-touch control pads make changing system settings a snap.
- Independent evaporator and condenser motors
- Auto restart in the event of power failure
- Heavy-duty locking casters.
- Fully insulated, heavy duty galvanized steel cabinet with KwiKool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation.
- Easy access Service Door
All PHP Series units come standard with our exclusive I/O Integral Condenser Dual Ducting, which provides isolated and balanced air pressure within the space for maximum cooling efficiency. The KPHP 2211-3 runs on a standard 115-volt/20-amp circuit with automatic restart after a power failure. The unit comes with an internal high-lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use.
| COOLING AND HEATING CAPACITY | ||
| HEATING | BTU/hr @ 55F at 60% RH | 21,240 (Nominal 1.8-Ton) |
| COOLING | BTU/hr @ 95F at 60% RH | 17,700 (Nominal 1.5-Ton) |
| COMPRESSOR DATA | ||
| Compressor Type | Hermetic Rotary | |
| Operating Cooling Temperatures | 60-110 F 50%RH | |
| Operating Heating Temperatures | 40-80 F 50% RH | |
| Refrigerant | R 454 B | |
| FAN DATA | ||
| Evaporator | ||
| Fan Type (Centrifugal) | Direct Drive | |
| Air Flow (CFM) | 600 | |
| Supply Air Device | Adjustable Vent | |
| Supply Air Chute Kit (optional) | 2 – 6″ Dia. x 18″ Length | |
| Condenser | ||
| I/O Integral Condenser | Balanced Air Flow | |
| Fan Type (Centrifugal) | Direct Drive | |
| Air Flow (CFM) | 950 | |
| Condenser Duct Specs (optional) | 2 – 14″ Dia. x 8′ Length | |
| Condenser Duct Max. Length | 25′ | |
| ELECTRICAL DATA | ||
| Power Supply (Volts) | 115/Single Phase | |
| Current Consumption (Amps) | 16 Cooling / 15.5 Heating | |
| Power Consumption (kW) | 1.84 | |
| Maximum Circuit Breaker (Amps) | 30 | |
| Recommended Breaker Size | 20 | |
| Minimum Circuit Ampacity(Amps) | 19.975 | |
| Min./Max. Voltage | 105-125 | |
| Power Cord Gauge/Length | 12/6′ | |
| Plug Configuration | NEMA 5-20 | |
| DIMENSIONAL DATA | ||
| Width x Depth x Height (Inches) | 20″ x 41″ x 43″ | |
| Weight (Lbs.) | 278 | |
| Shipping Weight (Lbs.) | 328 | |
| Ceiling Kit Weight (Lbs.) | 38 | |
| Shipping Weight w/ Ceiling Kit | 366 | |
| SAFETY DEVICE DATA | ||
| Compressor Overload | External | |
| Fan Motor Overload | Automatic Internal | |
| Evaporator Freeze Protection | Hot Gas Bypass | |
| High Pressure Switch | Manual | |
| Low Pressure Switch | Automatic | |
| Compressor Short Cycle | Yes | |
| Automatic Restart | Yes | |
| Thermostat Type | Microprocessor/Digital | |
| Condensate Pump Overflow | Yes | |
| Condensate Tank Overflow | Yes |
Additional information
| Weight | 271 lbs |
|---|---|
| Dimensions | 20 × 41 × 43 in |
