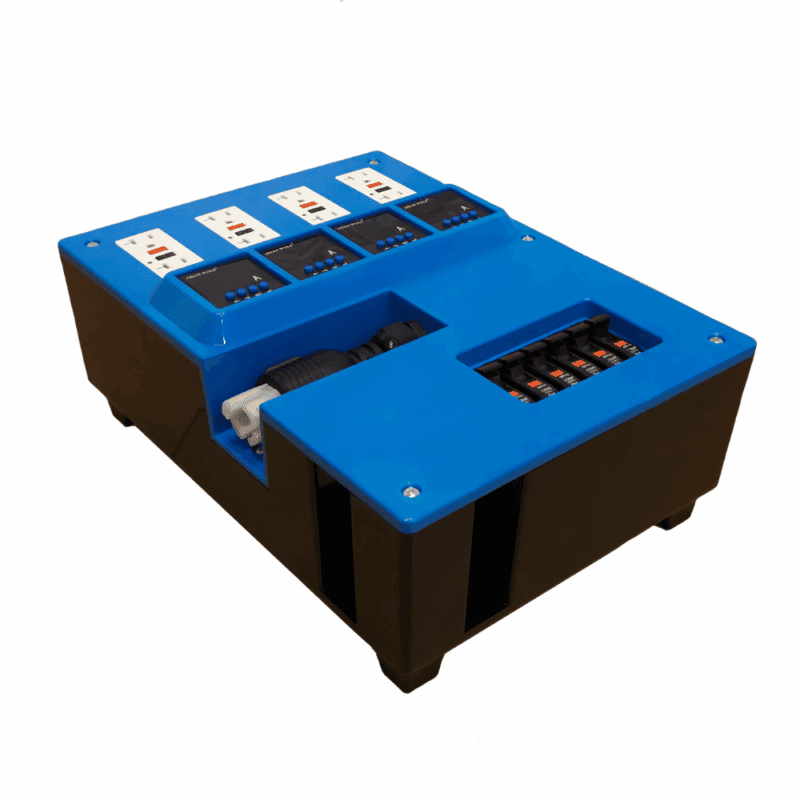

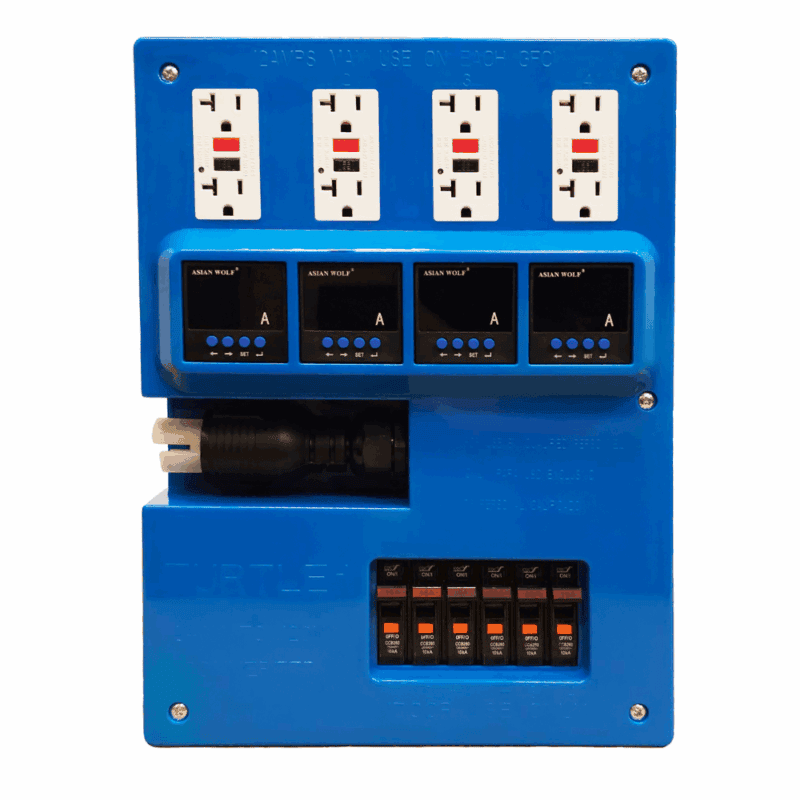

Power Distribution Box
$500.00
A power conversion box that distributes 220 volts / 30 amps to 4 – 115 volt / 15 amp circuit breakers, each with their own GFCI receptacle.
Filters Sort results Reset Apply Image Details
Image | Details |
|---|---|
Need Assistance?
At Thermal Flow, we understand that choosing the right bed bug equipment can be a daunting task. That's why we encourage customers to call us for expert guidance and personalized assistance in making their purchase.
Call NowDescription
Power Distribution Box can come in handy for residential projects. It uses 220 volts/30 amps from a dryer or stove outlet. The power box splits the power to 4 – 115 volt / 15amp circuit breakers that each have their own 2 plug GFCI receptacle. Click here for a full kit including all of the adapters and cords you will need.
National Electric Code for extended power usage states that you shouldn’t exceed 80%. For the extended use of the box, only 12 amps per GFCI should be utilized.
Specifications
- Rating: ETL Listed 125/250V 30 Amp
- MAX Amps: 60 Amps/125 Volts
- Input: NEMA L14-30 Twist Lock
- Receptacles: (4) 15 Amp Duplex
- GFCI Protection: YES
- Overcurrent Protection: YES
- Power Box Weight: 10 Pounds
Specifications
- Rating: ETL Listed 125/250V 30 Amp
- MAX Amps: 60 Amps/125 Volts
- Input: NEMA L14-30 Twist Lock
- Receptacles: (4) 15 Amp Duplex
- GFCI Protection: YES
- Overcurrent Protection: YES
- Power Box Weight: 10 Pounds
