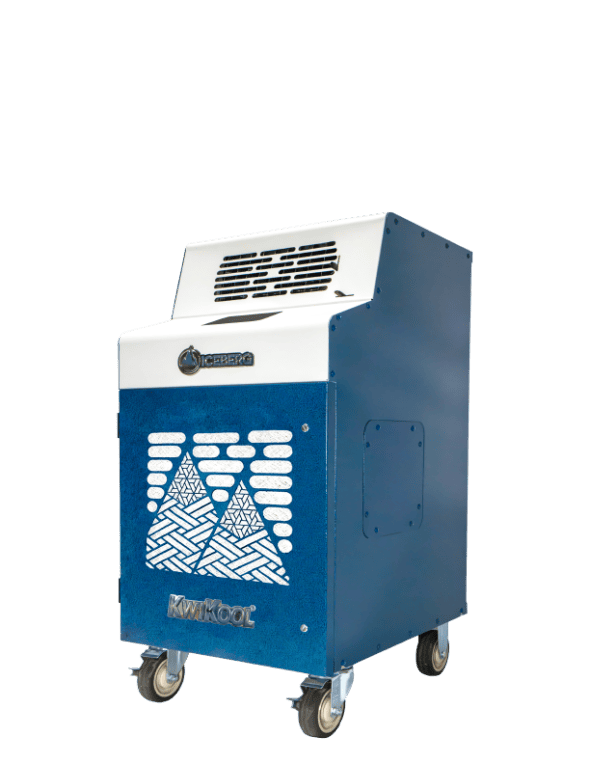

Kwikool KWIB 1811-3 Water Cooled Air Conditioner
$3,995.00
The Model KWIB1811-3 Water-Cooled Air Conditioner (nominal 1.5-ton or 17,700 BTU) is the smallest water-cooled unit possible in size and capacity. Water-cooled air conditioners use water from a clean-water supply source such as sink to cool the space instead of air. Perfect for applications where there is no availability to discharge condenser air, such as open warehouses. Water is used to remove the heat and also cool the air through the evaporator. For quantity discount pricing please call 833-401-3569 extension 2, or submit a contact form and a representative will contact you to assist.
Free Shipping to zoned commercial or industrial location (lower 48 states) with dock or forklift, residential or liftgate will carry an additional fee. KwiKool products are proudly MADE IN AMERICA.
Description
The Kwikool KWIB 1811-3 Water-Cooled Air Conditioner (nominal 1.5-ton or 17,700 BTU) is the smallest water-cooled unit possible in size and capacity in The Iceberg Series, KwiKool’s Flagship Line of portables. With its full-featured design and high sensible cooling, the Kwikool KWIB 1811-3 is the perfect solution for cooling small server and IDF rooms. The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics, to the long list of standard features (most of which are not even available in other brands), the Iceberg Series out performs, out lasts, and out features other portables and all at a price that is comparable to the no frills products that are available.
All Iceberg Series KWIB water-cooled air conditioner units require access to a circulating water system, such as chilled water. Using tap water for water-cooled models is not recommended except for temporary applications.
The KWIB models are equipped with a self-regulating internal water regulating valve, which is rated up to 150 psi. The Kwikool KWIB 1811-3 runs on a standard 115-volt/15-amp circuit with automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use.
Kwikool KWIB 1811-3 Air Conditioner Standard Features
- MADE IN USA
- 17,700 BTU/H – 1.5 Ton capacity water-cooled
- Compact yet Powerful
- Runs on 115V 15 amp circuit
- Wide Operating range of 60ºF-110ºF
- ETL and CETL listed to UL and CSA standards
- Includes counterflow coaxial condenser coil with automatic water regulating valve.
- Multi-function microprocessor control with a large, easy-to-read LCD display
- Easy-touch control pads make changing system settings a snap.
- Self Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
- Input/Output Alarm Contacts for connection to building systems
- Internal high lift condensate pumps and a 5- gallon reservoir tank for total condensate flexibility.
- Condensate overflow protection
- Three fan speeds
- Auto speed- automatically sets fan speed based on heat load demand (not available on single speed models)
- Thermostatic Expansion Valve
- Heavy duty compressor with automatic restart and short cycle protection.
- Motors and compressors have overload protection.
- High-pressure safety with manual reset.
- Low-pressure safety with automatic reset.
- Automatic freeze protection using hot gas bypass and fan cycling.
- Low ambient controls
- Heavy-duty locking casters.
- Rifle tube coils for efficient heat transfer.
- Fully insulated, heavy duty galvanized steel cabinet with Kwikool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation.
- Sight glass with moisture indicator.
- Filter dryer for Moisture protection
- Easy access Service Door
- Shraeder service ports.
| COOLING CAPACITY | ||
| BTU/hr @ 95F at 60% RH | 17,700 (1.5-Ton) | |
| COMPRESSOR DATA | ||
| Compressor Type | Hermetic Rotary | |
| Operating Temperatures | 60-110 F 50%RH | |
| Refrigerant | R 454 B | |
| FAN DATA | ||
| Evaporator | ||
| Fan Type (Centrifugal) | Direct Drive | |
| Air Flow (CFM) | 600/3 Speed | |
| Supply Air Device | Adjustable Vent | |
| Supply Air Chute Kit (optional) | 2 – 5″ Dia. x 16″ Length | |
| Condenser Water Flow Data | ||
| Flow Regulating Valve 1/2″NPT | Automatic | |
| Inlet Water 85F-95F Exit (GPM) | 4.5 | |
| Inlet Water 75F-95F Exit (GPM) | 2.25 | |
| Inlet Water 65F-95F Exit (GPM) | 1.5 | |
| Inlet Water 55F-95F Exit (GPM) | 1.2 | |
| ELECTRICAL DATA | ||
| Power Supply (Volts) | 115/Single Phase | |
| Current Consumption (Amps) | 13.6 | |
| Power Consumption (kW) | 1.41 | |
| Maximum Circuit Breaker (Amps) | 20 | |
| Recommended Breaker Size | 15 | |
| Minimum Circuit Ampacity(Amps) | 16.375 | |
| Min./Max. Voltage | 105-125 | |
| Power Cord Gauge/Length | 14AWG/6′ | |
| Plug Configuration | NEMA 5-15 | |
| DIMENSIONAL DATA | ||
| Width x Depth x Height (Inches) | 16″ x 22″ x 38″ | |
| Weight (Lbs.) | 165 | |
| Shipping Weight (Lbs.) | 215 | |
| SAFETY DEVICE DATA | ||
| Compressor Overload | External | |
| Fan Motor Overload | Automatic Internal | |
| Evaporator Freeze Protection | Hot Gas Bypass | |
| High Pressure Switch | Manual | |
| Low Pressure Switch | Automatic | |
| Compressor Short Cycle | Yes | |
| Automatic Restart | Yes | |
| Thermostat Type | Microprocessor/Digital | |
| Condensate Pump Overflow | Yes | |
| Condensate Tank Overflow | Yes |
